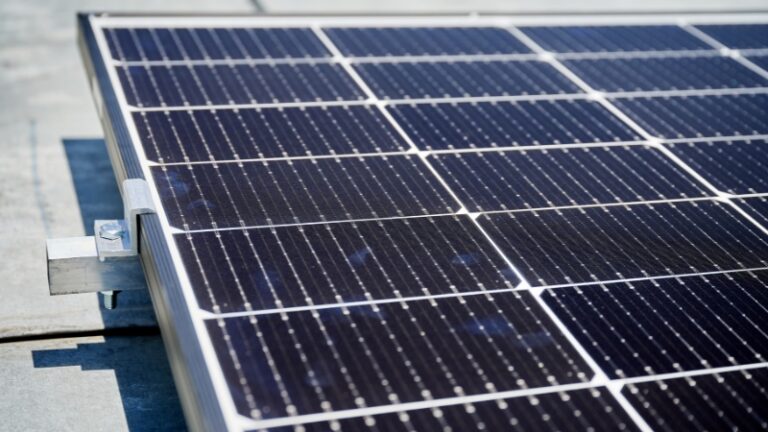

400 Watt Solar Panel – Everything You Need to Know

A 400-watt solar panel represents one of the most efficient residential solar module classes widely available today. It delivers high power density in a single unit, reduces roof space requirements, and lowers balance-of-system costs compared to older 250W–330W modules.

In practical terms, a modern 400W photovoltaic module can generate around 1.6 to 2.5 kilowatt-hours per day, depending on location. Over a 25–30-year lifespan, that translates into tens of thousands of kilowatt-hours of electricity production.

When properly installed, these panels require minimal maintenance and offer predictable long-term performance backed by 25-year warranties.

What Is a 400 Watt Solar Panel Made Of?

A solar panel converts sunlight into electricity using the photovoltaic effect. The fundamental active material is crystalline silicon, which generates electrical current when exposed to photons.

A typical 400W panel contains the following core components:

This structure explains why solar panels have no moving parts and extremely low failure rates. The glass and aluminum frame protect the fragile silicon wafers, while encapsulation prevents moisture intrusion.

Since there are no mechanical components, degradation is mostly chemical and thermal rather than mechanical. That is why most manufacturers confidently offer 25-year performance warranties.

The Science Behind Solar Panels

The photovoltaic effect was formally explained by Albert Einstein in 1905 when he described the photoelectric effect. Photons from sunlight strike silicon atoms, displacing electrons and creating an electric current.

Modern panels achieve efficiencies between 19% and 22%, meaning they convert roughly one-fifth of incoming solar energy into usable electricity.

The efficiency equation is:

Efficiency = Electrical Output ÷ Solar Irradiance Input

Under standard test conditions (STC), irradiance is defined as 1000 W/m² at 25°C cell temperature.

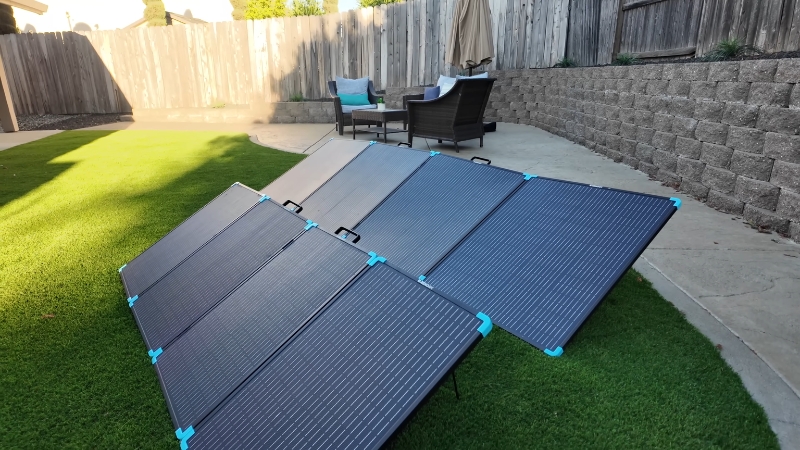

Power Output of a 400W Solar Panel

The rated power of 400 watts represents the maximum output under STC conditions.

Power is calculated as:

P = Voltage × Current

Most 400W panels operate near:

These values demonstrate that 400W panels achieve high output by optimizing both voltage and current. Higher voltage improves system design flexibility, especially in grid-tied installations.

However, real-world output rarely matches STC values because outdoor conditions differ from laboratory conditions.

Real-World Energy Production

Energy production depends on location and peak sun hours. Energy is calculated as:

Energy (kWh) = Power (kW) × Time (hours)

Below is the estimated daily production for a single 400W panel in different climates:

Location has the largest impact on energy yield. A 400W panel in California can produce nearly double the energy of the same panel in Northern Europe.

This explains why solar system sizing must always account for regional irradiance rather than relying solely on panel wattage.

How Many 400W Panels Does a Home Need?

The average U.S. household consumes approximately 890 kWh per month (about 10,700 kWh per year).

If a 400W panel produces 730 kWh annually in a sunny state:

10,700 ÷ 730 ≈ 14.6 panels

Rounded up, 15 panels are required.

This shows that panel count scales linearly with electricity usage. Higher efficiency panels reduce the roof footprint compared to lower wattage panels. Using 400W modules instead of 300W modules can reduce the required panel count by roughly 25 percent.

Roof Space Requirements

A typical 400W panel measures about 79 inches by 39 inches, roughly 20.8 square feet.

Roof availability often determines system size. Higher wattage panels reduce spatial constraints, especially on smaller residential rooftops. Fewer panels also reduce mounting hardware and wiring complexity.

Cost of a 400 Watt Solar Panel

Retail pricing ranges between $300 and $400 per panel, depending on brand and efficiency class.

Assuming $350 per panel and 730 kWh annual output:

If electricity costs $0.25 per kWh:

730 × $0.25 = $182.50 annual savings

The higher the local electricity rates are, the faster the payback occurs. In high-cost states like California or parts of Europe, payback periods can fall below 3 years when incentives are applied.

Pairing with Batteries

A 400W panel typically produces 2 kWh per day in sunny climates. A 1 kWh lithium battery is commonly paired for partial storage.

Lithium batteries outperform lead-acid across efficiency, cycle life, and charge speed. Although initial costs are higher, lifecycle economics favor lithium in nearly all residential solar systems.

Key Technical Specifications Explained

The temperature coefficient is particularly important. Many 400W panels have coefficients near -0.35%/°C. If the panel temperature rises 30°C above 25°C, output can drop by over 10%. Proper airflow and mounting elevation mitigate this loss.

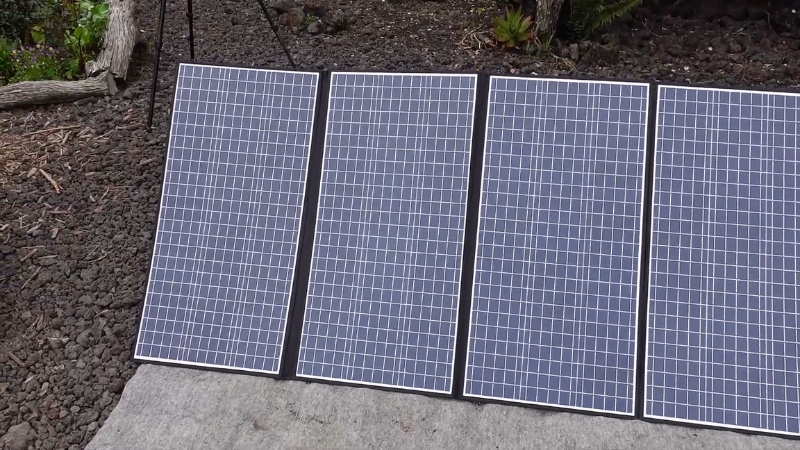

What Can a 400W Panel Power?

In optimal conditions, one 400W panel can generate enough daily energy to run:

However, continuous high-load appliances require either multiple panels or battery storage.

Off-Grid 400W Solar Kit Components

An MPPT charge controller improves energy harvest by up to 30% compared to PWM controllers. A 2kW inverter ensures that short bursts of high appliance startup loads are supported.

Maintenance and Lifespan

Solar panels require minimal maintenance:

Most 400W panels carry 25-year performance warranties guaranteeing 80–85% output after 25 years.

Annual degradation rates typically range between 0.3% and 0.5%.

Final Assessment

A 400-watt solar panel offers high efficiency, strong energy density, and long-term durability suitable for residential, RV, marine, and small off-grid systems. It reduces roof space requirements while delivering predictable energy generation for decades.

With proper installation, cooling airflow, lithium storage pairing, and routine cleaning, a 400W panel can operate reliably for 25 to 30 years while generating substantial long-term savings.

In today’s residential solar market, the 400-watt class represents a practical balance between efficiency, size, cost, and durability.
